Event Loop in Javascript

In the last article, we learned about how JavaScript execution works. But that is not the complete flow. We have not taken a few properties into account, and that's why in this article we will cover all of them in detail and in-depth.

Let's start.

Understanding the problem statement

Let's have a look at the below code:

Code 1

// Code 1
console.log("start");

function func1(){
    console.log("inside function")
}

func1();
console.log("end");

Code 2

// Code 2
console.log("start");

setTimeout(function(){
    console.log("inside function")
}, 2000);

console.log("end");

The way these two codes execute in JavaScript is completely different.

Since JavaScript is a single-threaded language, execution starts from top to bottom.

• In Code 1, execution moves line by line sequentially.
• In Code 2, because setTimeout is part of the Web APIs, the execution flow changes.

Output Comparison

Code 1 Output:

Plaintext

start
inside function
end

Code 2 Output:

Plaintext

start
end
inside function

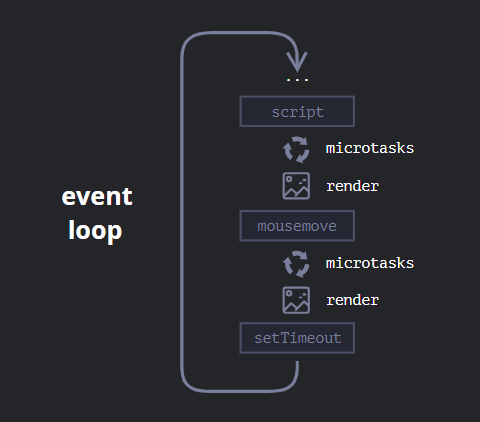

Adding event loop to the execution flow

• Step 1: As soon as the JS engine encounters the <script> tag, it creates a Global Execution Context inside the Call Stack.
• Step 2: It encounters the first log statement and prints "start".
• Step 3: It finds setTimeout. The callback of setTimeout is offloaded to the browser's Web APIs memory, and a timer of 2 seconds is attached to it.
• Step 4: Since JS engine is single-threaded, execution moves forward immediately, printing "end".
• Step 5: Once the 2-second timer finishes, the callback function is pushed to the Task Queue (specifically the Macrotask Queue), waiting for the Call Stack to empty.
• Step 6: Now comes the job of the Event Loop. Its main responsibility is to check if the Call Stack is empty. Once empty, it moves tasks from the Task Queue to the Call Stack.
• Step 7: The setTimeout callback function is pushed to the Call Stack and executed.
• Step 8: The Call Stack becomes empty, and execution ends.

Now go ahead and drink some water 🥛

Definition of all the jargons

Call Stack

Web APIs

Task Queue / Callback Queue

Microtask Queue

Examples: process.nextTick, Promises (.then, .catch), queueMicrotask, MutationObserver.

Macrotask Queue

Examples: setTimeout, setInterval, setImmediate, requestAnimationFrame, I/O, UI Rendering.

Priority of the task queue

Suppose we have console.log, a Promise, an Event Listener, and a setTimeout in the execution context:

1. console.log executes first, directly on the Call Stack.
2. Promises (.then) execute next, as they enter the Microtask Queue (highest async priority).
3. Event Listeners execute next from the Callback Queue.
4. setTimeout executes last, as it belongs to the Macrotask Queue (lowest priority).

Few questions on event loop and task queue

Question 1

console.log('Start');

const delay = (ms) => new Promise(resolve => setTimeout(resolve, ms));

delay(1000).then(() => {
    console.log('Delayed function');
});

console.log('End');

Start
End
Delayed function

Question 2

setTimeout(function () {
    console.log(1);
}, 0);

console.log(2);

Promise.resolve().then(() => {
    console.log(3);
});

setTimeout(function () {
    console.log(4);
});

console.log(5);

Solution

2
5
3
1
4

Question 3

console.log('Start');

setTimeout(() => {
    console.log('Inside setTimeout 1');
}, 0);

new Promise((resolve, reject) => {
    console.log('Inside Promise constructor');
    resolve();
})
.then(() => {
    console.log('Inside Promise then 1');
    return new Promise((resolve, reject) => {
        console.log('Inside nested Promise constructor');
        resolve();
    });
})
.then(() => {
    console.log('Inside Promise then 2');
});

setTimeout(() => {
    console.log('Inside setTimeout 2');
}, 0);

console.log('End');

Solution

Start
Inside Promise constructor
End
Inside Promise then 1
Inside nested Promise constructor
Inside Promise then 2
Inside setTimeout 1
Inside setTimeout 2
